FerrAlert HALO II Plus Ferromagnetic Detection System

Our Products: MRI Equipment > MRI Safety > Ferromagnetic Detection
SKU: 600-104
FerrAlert leading edge technology provides the most reliable detection and prevention of ferromagnetic threats from entering the MRI room (Zone IV).
You can earn 37895 Ocelco Cash Reward Points on this product!
Price: $33,120.00
Previous Item Previous Item   Next Item Next Item
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
FerrAlert HALO II Plus Ferromagnetic Detection System
(Click to see larger image and other views)
Product Details

FerrAlert HALO II Plus Ferromagnetic Detection System

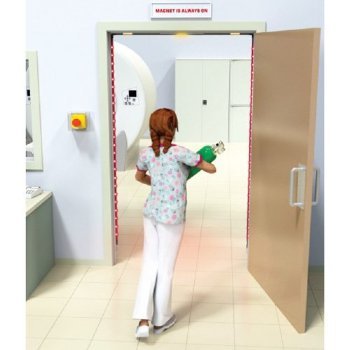

The best ferromagnetic detector to protect the MRI suite. FerrAlert leading edge technology provides the most reliable detection and prevention of ferromagnetic threats from entering the MRI room (Zone IV). FerrAlert detectors are recognized to be the most accurate ferromagnetic detectors for MRI, due to their exclusive location-specific feature. The New Plus Package dramatically reduces alarm fatigue by not alarming on the MRI door and ferromagnetic objects exiting the MRI room. In addition, FerrAlert HALO II Plus accepts our new FerrAlert Encompass accessory. The FerrAlert Encompass Ferromagnetic threat detector automatically detects and logs unintended ferromagnetic objects entering Zone IV. FerrAlert HALO II provides significant assistance in the prevention of serious injury to patients and staff or equipment damage. Our New Visual Advanced Warning Technology alerts on the approach of ferromagnetic threats to Zone IV, well before the portal is reached. The greater the threat, the further away the warning is activated.

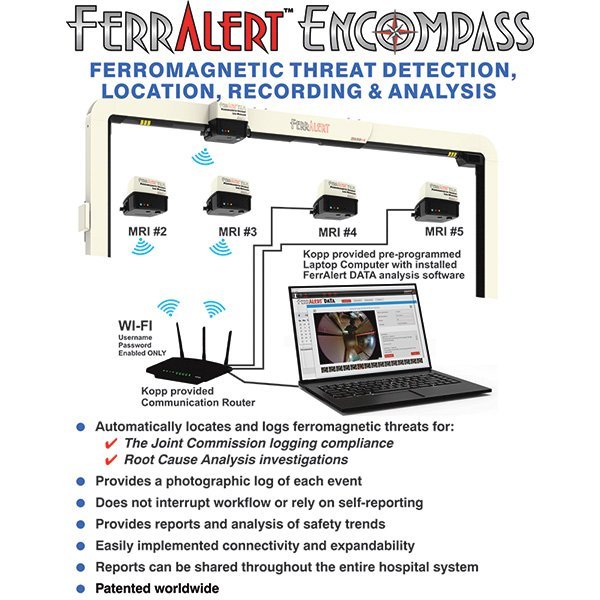

FerrAlert Encompass

The FerrAlert Encompass Ferromagnetic threat detector automatically detects and logs unintended ferromagnetic objects entering Zone IV. It is the only system that provides a photographic stream and does not require manual logging, thus allowing the technologists to perform uninterrupted patient care without wasting time with self-reporting. It also allows for the analysis of safety trends that can be shared throughout the entire hospital system. The data analysis software allows effortless generation of reports for The Joint Commission inspections. The FerrAlert Encompass can greatly assist with the new requirements for The Joint Commission compliance.
View the highlighted Joint Commission requirements

All FerrAlert products are entirely passive in operation and are completely safe for your staff, patients and MRI image quality.

Reminder: Ferromagnetic detectors should not replace current MRI pre-screening procedures. To provide your patients and personnel with the most comprehensive safety, the use of diligent screening protocol together with our high quality ferromagnetic detectors is recommended.

MRI Safety VideosMRI Safety Videos

Authorized distributor of KOPP Development

Ocelco.com offers the FerrAlert Halo II Plus with two configurations.
Option 1: FerrAlert HALO II Plus Detection System
Option 2: FerrAlert HALO II Plus with the FerrAlert Encompass System

Please call for a complete brochure on Ferromagnetic Detection Systems

FerraAlert Features:

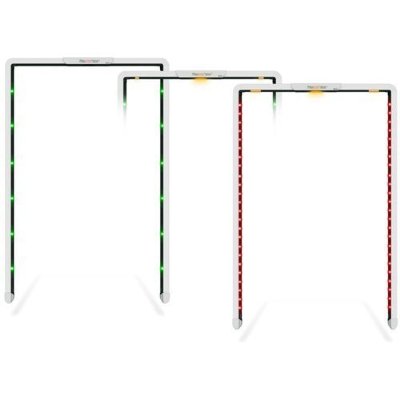

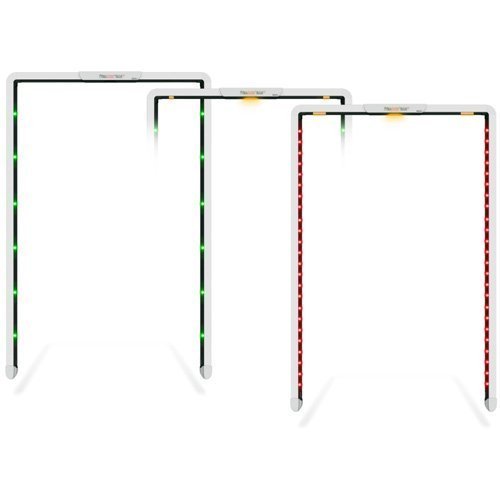

FerrAlert HALO II PLUS HAS EASILY UNDERSTOOD STATUS INDICATORS
GREEN– Go YELLOW – Warning RED – STOP!

NEW - INTELLIGENT VISUAL ADVANCED WARNING alerts on the approach of ferromagnetic threats to Zone IV, well before the portal is reached. The greater the threat, the further away the warning is activated. The audio alarm is activated only at the threshold if advanced visual warning was ignored. Ferrous objects not approaching the entrance to Zone IV do not trigger a warning. (Ferrous object is not a threat, until it tries to enter the Magnet Room)

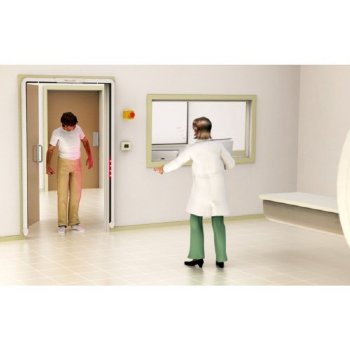

INSTANTLY PINPOINTS LOCATION OF FERROMAGNETIC OBJECT allowing the Technologist to quickly and easily identify all ferromagnetic threats – NO invasive pat-down or handheld detectors required.

ALARM STATUS IS ALWAYS VISIBLE FROM BOTH inside and outside THE MRI ROOM Unlike all other detectors, ONLY FerrAlert allows the Technologist full control of the MRI room at all times. ACR and The Joint Commission require control of Zone IV at all times!

PATENTED TECHNOLOGY SUPPRESSES FALSE WARNINGS while providing the HIGHEST SENSITIVITY to ferromagnetic threats. This technological advancement reduces alarm fatigue and increasing throughput. The use of 24 sensors ensures uniform sensitivity and detection reliability from head to toe.

CONTINUOUS MAGNETIC DISTURBANCE MONITORING provides instant feedback by 2 highly visible integrated bar graphs.

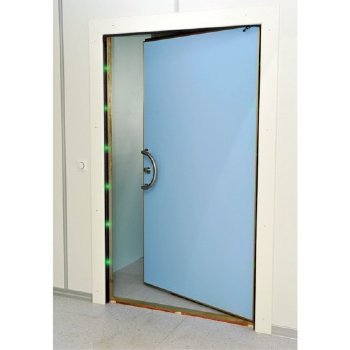

MOST FLEXIBLE INSTALLATION for all facility architectural layouts. Mounts unobtrusively with both in and out swinging doors.

ALARM INDICATOR LIGHTS NOT BLOCKED BY AN OUTWARD SWINGING DOOR

SAFE, PASSIVE DETECTION no electromagnetic radiation, RF radiation, or magnetic field.

ADJUSTABLE SENSITIVITY AND AUDIO ALARM LEVELS
CONFORMS TO ALL APPLICABLE RECOMMENDATIONS AND STANDARDS including FDA, ACR, AAMI, Joint Commission, FGI and VA.

18 DETECTION ZONES for ACCURATE and FAST finding of a ferromagnetic threat.

COMPREHENSIVE SELF TEST FUNCTION for hospital periodic maintenance requirements as well as piece of mind.

SELECTABLE CHIME to alert staff of MRI entrance ingression.

REMOTE ALARM CAPABILITY optional remote audio or visual alarm.

FERRALERT APPROVED PATIENT TRANSPORT EQUIPMENT available which will not trigger an alarm.

FerrAlert Encompass Features:

  • Adjustable width 25-52 Inches.
  • Sorting of data to identify unintended ferromagnetic objects.
  • Easily implemented connectivity and expand-ability.
  • Records images before, during and after the Ferromagnetic threat enters the magnet room.

FerrAlert HALO II Plus Specifications:

Dimensions: Height 83” (211 cm), Depth 2.25” (5.7 cm)

Adjustable Width:
Model H22 – Adjustable width 42” – 52” (106.68 – 132.08 cm)
Model H21 – Adjustable width 31” – 41” (78.74 – 104.14 cm)

Complies with ES60601-1-8: International Standards for Medical Device Alarms.

Complies with IEC 60101-1:2005: Medical Device Specification Requirements.

Medical Power Supply: 100 to 240 VAC, 47 to 63 Hz, 42 Watts

Sensitivity: Adjustable

Audio Alarm: In Portal

Photoectric Beam: Activates Alarm Function mode when moving object enters the FerrAlert Portal.
