Hoyer Ascend patient lifts transfer patients from a low-seated position to a fully extended one with ease, promoting resident independence.
You can earn 4743 Ocelco Cash Reward Points on this product!
Price: $4,743.09
Hoyer Ascend Patient Lift
Hoyer Ascend Patient Lift
Product Details

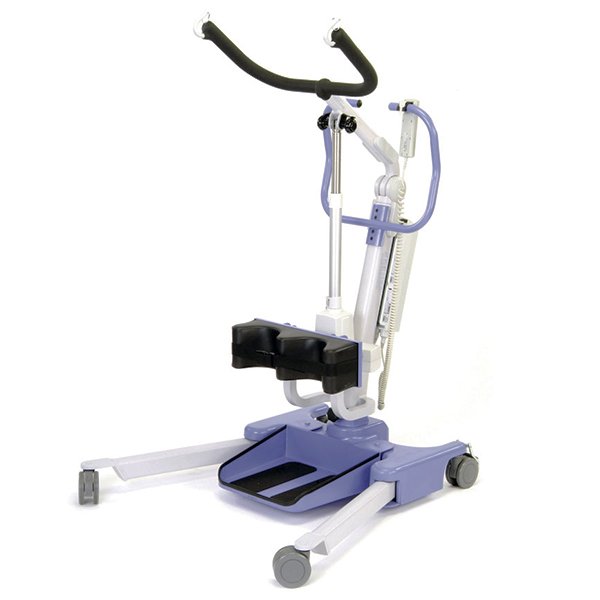

Hoyer Ascend Patient Lift

Hoyer Ascend patient lifts provide a quick, safe way to assist those who have trouble standing. Because stand-up lifting is less stressful for the resident, and quicker and easier for the caregiver, the Hoyer Ascend lift simplifies dressing, toileting, and transfer routines. With its unrivaled range of movement, the Ascend patient lift can transfer a resident from a low-seated position to fully extended with ease. Its active lifting motion is specially designed to encourage user participation, which ultimately promotes resident independence and well-being. As well as being compact and easy to operate in confined spaces such as bathrooms, the Hoyer Ascend lift has many key design features that make it a truly flexible piece of equipment.

Hoyer Ascend patient lifts run on a rechargeable battery and is very easy to use. It takes the patient from a seated position to standing position at the touch of the Lift button. Press the Down button and slowly return the patient to the seated position. The base legs are also motor driven-operated by the hand control. The knee pad is adjustable in height by six inches to ensure the resident feels comfortable and is fully supported throughout the lifting process. The pad, which has a molded design to provide additional support, also has a leg strap for those residents needing additional reassurance.

Hoyer Ascend Patient Lift Features and Benefits

Quick and Safe.
Low Pivot Point.
Power Base - Legs Open/Close with Button on Hand Control.
Nimble, Compact Design Makes Small Space Maneuverability Easy.
Extensive Range of Motion to Accommodate Many Resident Heights and Capabilities.
Active Lifting Motion Encourages User Participation.
Removable Foot Tray Allows Patient to Stand and Take Small Steps While Being Held Up by the Lift.
Stand-Up Lifting is Less Stressful for Users.
Natural Standing Motion with Arc-Lifting Design.
Extra-Long Padded Knee Supports Adapt to Patients of Varying Heights.
Adjustable U-Base Spreads Around Chairs or Commode For Best Access.
Includes 2 12-Volt Rechargeable Batteries and Wall-Mounted Charger.
90-Day Warranty On Battery.

Supportive Knee Tray
One-hand adjustment raises or lowers knee pad up to 6 inches for proper placement to ensure resident comfort and support. The pad also has a leg strap for those residents needing additional reassurance.

Removable Foot Tray
The removable foot tray allows the Ascend patient lift to be used as a walking aid, great for residents that need walking rehab or training.

NOTE: Slings sold separately

Hoyer Ascend Lift Specifications

Safe Working Load: 375 lbs
Maximum Overall Length: 43.3"
Minimum Overall Length: 39.3"
Maximum Overall Height: 67.3"
Minimum Overall Height: 42.1"
Maximum Height to Attachment Point: 65.5"
Minimum Height to Attachment Point: 38.9"
Turning Radius: 51.9"
Legs Open - External Width: 39.1"
Legs Open - Internal Width: 34.8"
Legs Closed - External Width: 24.8"
Legs Closed - Internal Width: 20.0"
Overall Height of Legs: 4.7"
Ground Clearance: 1.4"
Front Twin Casters: 4.0"
Rear Braked Casters: 4.0"


Mast, Base & Boom Assembly: 97 lbs
Power Pack: 6.6 lbs
Total: 103.6 lbs
Base Assembly: 42.9 lbs
Mast & Boom Assembly: 45.1 lbs
