SKU: 207-413
Spectro2 10 Pulse Oximeters are a low cost, spot-check device displaying SpO2, pulse rate, signal strength and (PI).
You can earn 411 Ocelco Cash Reward Points on this product!
Price: $411.28
Spectro2 10 Pulse Oximeter
Spectro2 10 Pulse Oximeter
Product Details

On Backorder Until Further Notice

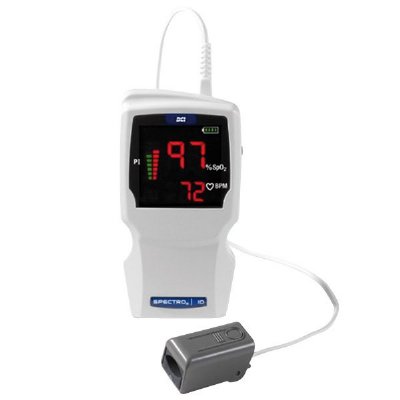

Spectro2 10 Pulse Oximeter

Affordable, dependable and easy to use, the SPECTRO2 10 Pulse Oximeter is a low cost, spot-check device displaying SpO2, pulse rate, signal strength and Pulse amplitude Index (PI). This device delivers reliable performance, meeting the needs of health care providers in primary care environments. Its unique optional accessories allow clinicians to customize a solution to meet the needs of virtually any clinical environment.

Clinical Settings:
Routine patient care assessments
Ongoing management of episodic conditions
Health wellness checks
With its unique features and optional accessories, the SPECTRO2 10 oximeter can be customized to address the needs of virtually any clinical setting.

Spectro2 10 Features:

PI (Pulse amplitude Index) Indicator
Helps identify and maintain a good test site
Enables confidence in results
One of the largest displays on the hand-held market
At-a-glance patient assessment
Easy to view from wide angles
50% larger LEDs than comparable hand-held devices
On-board sensor storage cradle
Stores and protects sensor
Reduces damage and minimizes replacement costs
Sensor is always ready and available
Versatility with multiple sensors
Compatible with all BCI sensors
New BCI 20-inch Spot-Check Sensor
Keeps frustrating cable tangles to a minimum
Quick, easy patient assessments

Spectro2 10 Technical Specifications:

DISPLAYS AND INDICATORS
Keys: ON/OFF button
SpO2 (FUNCTIONAL)
Range: 0 to 99% (1% increments)
Standard Accuracy: Adult / Ped ±2 Arms at 70 - 99%
Low Perfusion Accuracy: Adult / Ped ±2 Arms at 70 - 99% Less than 70% unspecified (Pulse amplitude <1%. Tested using industry standard simulator.)
Averaging: 8 beats
PULSE RATE
Range: 30 - 254 bpm (1 bpm increments)
Standard Accuracy: ±2 Arms over 30 - 254 bpm range
Low Perfusion Accuracy: ±3 Arms over 30 - 250 bpm range Less than 70% unspecified (Pulse amplitude <1%. Tested using industry standard simulator.)
Averaging: 8 seconds
PULSE SIGNAL STRENGTH
Range: 0 to 9 indicator, indicates logarithmic strength of patient pulse
Display: 9-segment red LED bargraph
PULSE AMPLITUDE INDEX
Range: 0% - 20% (0.2% increments)
Display: 9-segment green/yellow LED bargraph
POWER REQUIREMENTS
Battery: 4 "AA" alkaline or custom 2-cell Lithium Ion rechargeable battery pack
External (from AC Charger): 9V, 3A output; input of 100-240 VAC, 50Hz, 60Hz
External (from USB): Input: 5V, 500mA max (USB powered source) Output: 9V, 230mA max to oximeters
BATTERY LIFE
Alkaline Cells Life: Approx. 32 hours of use
Rechargeable Battery Life: Approx. 54 hours of continuous use (new) Approx. 3 hours typical recharge time
MEMORY
Stores data for up to 99 patients
TREND STORAGE
Parameters: %SpO2, Pulse Rate, Pulse amplitude Index and Relative Time
Interval: 4 seconds
Capacity: 144 hours at 4 second intervals
ENVIRONMENT
Operating Temperature: Oximeter and accessories: 0°C to 55°C (32°F to 130°F), Power supply: 0°C to 40°C (32°F to 104°F), Li+ battery charging: 5°C to 45°C (41°F to 113°F)
Relative Humidity: Operating: 15 to 95% (non-condensing), Storage: 10 to 95% (non-condensing)
Altitude: Up to 10,000 ft.
Shock and Vibration: Transport per ISO 9919
PHYSICAL
Dimensions: 3.3W x 6.1H x 1.7D in
Weight: 340g including four "AA" batteries
STANDARDS
EN60601-1, EN60601-1-2, ISO 9919


Optional Protective Rubber Glove: 207-419-CL
